The top section has developed a bend where the opener arm pulls on it. On the way up it flexes visibly, the door hesitates near the top of its travel, and daylight shows through the joint below it when the door is closed.
Not all sections are equal. The bottom section carries the brackets that anchor the lift cables, the seal that meets the floor, and most of the abuse from ice, salt and bumpers. The top section takes the pull of the opener arm and often carries a strut. The intermediate sections mostly carry hinges and rollers. Which position is damaged shapes the whole job: a bottom section means releasing spring tension before the brackets come off, a top section means dealing with the opener bracket and top fixtures, and a middle section is the most straightforward exchange. The technician plans the visit around that position.
Sound familiar?Guelph
Garage Door Panel Replacement · Guelph
Scene 1
Sections are made to fit one model, so the first job is to name yours. The technician looks for the manufacturer's label, usually a sticker on the end of a section, inside the top section or on a track, and reads the model or series, the date and sometimes a colour code. Then come the measurements: overall width and height, the height of each section, its thickness, and the spacing of the hinge holes on the stiles. The panel design is noted too, whether short raised panels, long panels, flush or a carriage-house look, along with the window layout and the type of joint between sections. Photographs of the label and of the whole door go into the file.
Scene 2
The bottom section is the one place where the lift cables attach, and those cables are held taut by the springs. Before its brackets are unbolted, the technician takes the energy out of the system. On a torsion door that means fitting winding bars into the cone and unwinding the spring turn by turn while the set screws are loosened; on an extension-spring door it means propping the door open and unhooking the springs. With the cables slack, the bottom brackets, the seal retainer and the section itself can be removed safely. The same steps are reversed at the end, and the door's balance is set fresh.
Scene 3

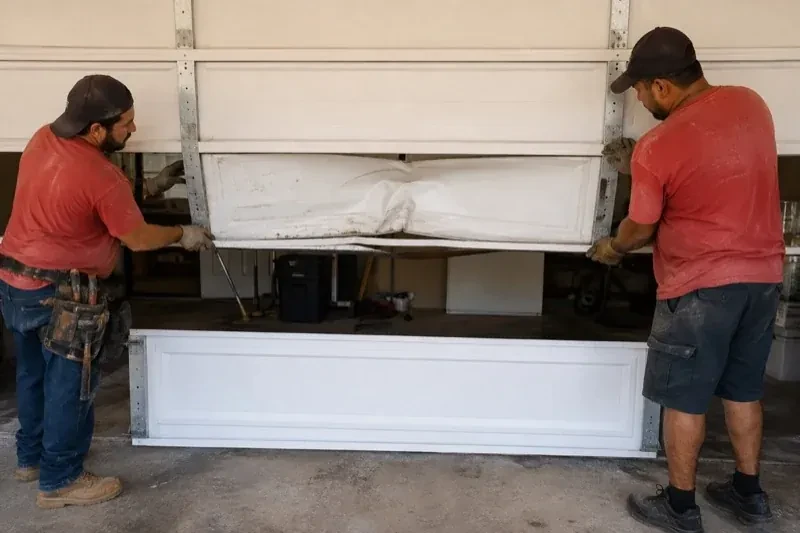

Since a bottom section frozen to the slab is the commonest way one gets bent, a few winter habits protect the new one. Sweep snow away from the outside of the door before it turns to slush and freezes under the seal. A light wipe of silicone on the new astragal helps it release from ice. If the door refuses to move on a cold morning, free the seal from the floor with warm water or a scraper before running the opener rather than letting the motor pull against it. A well-fitted bottom seal also keeps meltwater from wicking under the door in the first place.
What shapes the quoteSpeed River Door Specialists
FeesSame any hour
A little routine goes a long way. Each month, look along the hinges for loose screws, spin the rollers, and check the door's balance by lifting it by hand with the opener disconnected. Twice a year, apply a light garage-door lubricant to hinge pivots, roller stems and springs, and keep the tracks clean and dry. Rinse salt off the lower sections in spring, touch up chips, and keep the bottom seal clear of ice in winter.
Sections are made to order for a specific model, size, position and colour rather than kept in stock, so there is a lead time from the manufacturer. It varies with the maker, the colour and the season, and the technician confirms the expected timing when the order is placed. In the meantime the door is left in a safe state, either in normal use or braced and closed, depending on the damage.
A strut is a horizontal steel stiffener fastened across the inside of a section to keep it from bowing. Wide doors, top sections where the opener arm pulls, and bottom sections that take knocks are the usual places for them. If your damaged section had a strut, the new one gets a straight strut refitted or replaced. If a top section bowed because it never had one, adding a strut is part of putting it right.
WellingtonOntario
Garage Door Panel Replacement · Guelph/Eramosa, Puslinch, Priory Park, Everton
Every square is one home in a hundred.
On-site assessment
The top section has developed a bend where the opener arm pulls on it.
